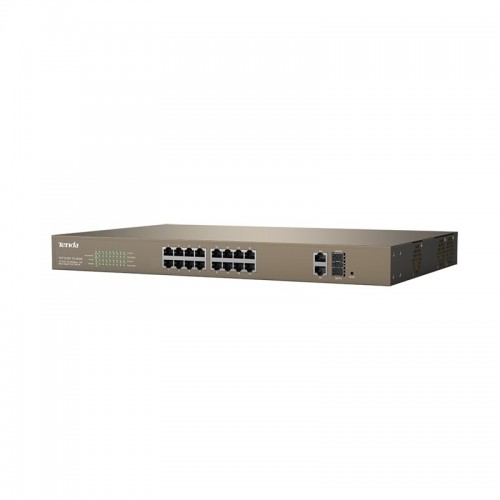

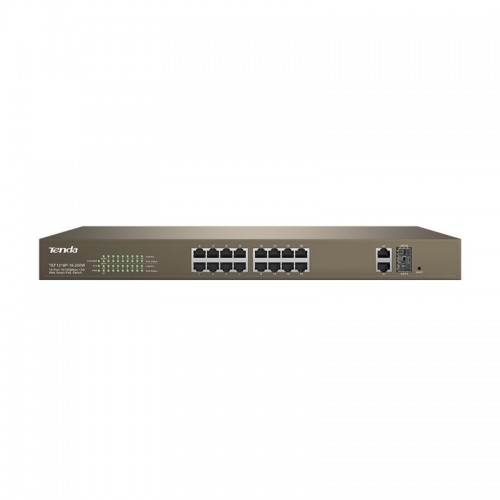

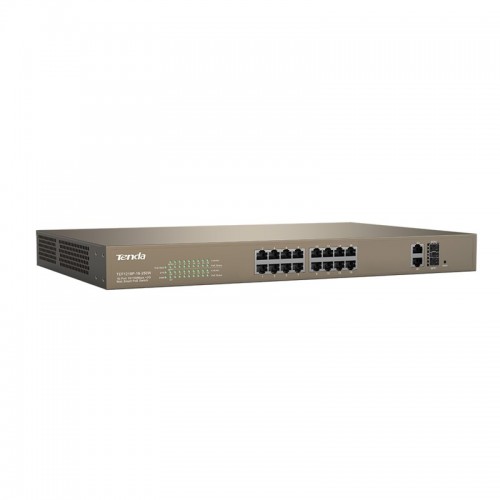

Tenda TEF1118P-16-150W 16 10/100Mbps PoE +1 Gigabit/SFP Slots Switch

Tenda TEF1118P-16-150W 16 10/100Mbps PoE +1 Gigabit/SFP Slots Switch

Tenda Tenda TEF1118P-16-150W 16 10/100Mbps PoE +1 Gigabit/SFP Slots Switch — a quality Network Switch available at Creators Computer.

Cash Discount Available

Product availability and pricing are subject to change. We will confirm availability and final price before processing your order.

Technical Specifications

Type Switch
Port 16 10/100 Mbps Base-TX ports(Data/Power) 1 10/100/1000 Mbps Base-T port(Data) 1 1000 Mbps Base-X SFP port
Network Standard IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af
Access Method 1 10/100/1000 Mbps Base-T port(Data) 1 1000 Mbps Base-X SFP port
Advanced Functions 6KV Lightning Protection Store and forward:Yes CCTV: 1-8 ports support QoS,If multiple IP cameras are connected to the switch, you are recommended to enable this mode and connect the G1 or SFP1 port of this switch to the upstream device,like the monitoring computer. This ensures smoother monitoring video playback. Standard: The switch’s functions are similar with a common unmanaged switch’s and all the ports of the switch can communicate with each other. VLAN: In this mode, 1-16 ports of the switch cannot communicate with each other, but can communicate with the G1 and SFP1 ports. It can be used to isolate broadcast storms and DHCP broadcasts. Extend: In this mode, the data rate of 1-8 port is limited to 10 Mbps, whereas the maximum transmission distance of the port is increased to 250 meters. All the ports of the switch can communicate with each other.
Transmission Method Wired
Data Transmission Rate 16 10/100 Mbps Base-TX ports(Data/Power) 1 10/100/1000 Mbps Base-T port(Data)
MAC Address Table 4K MAC
Environment Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Interface 16 10/100Base-TX ports(Data/Power) 1 10/100/1000Base-T port(Data) 1 1000Base-X SFP port
LED 16*Link/Act per device 1*G1 Link/Act per device 1*SFP Link/Act per device 1*PoE-MAX per device 1*Power per device
Power Supply PoE supply management: PoE supply management: Port 1 to Port 16 support IEEE802.3at/af POE standard Input Power: AC:100-240V~ 50/60Hz Power Consumption: in full configuration:<150W PoE Max Power Supply:135W
Dimensions (L x W x H) 294 x 178 x 44 mm ( W x D x H )
Warranty 1 Year

Product Overview

The Tenda Tenda TEF1118P-16-150W 16 10/100Mbps PoE +1 Gigabit/SFP Slots Switch is a Network Switch built for reliable, everyday performance. Available at ৳13,690.00 price in Bangladesh, with fast delivery across Dhaka and nationwide. Key specifications of the Tenda TEF1118P-16-150W 16 10/100Mbps PoE +1 Gigabit/SFP Slots Switch include Type: Switch, Port: 16 10/100 Mbps Base-TX ports(Data/Power) 1 10/100/1000 Mbps Base-T port(Data) 1 1000 Mbps Base-X SFP port, Network Standard: IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af, Access Method: 1 10/100/1000 Mbps Base-T port(Data) 1 1000 Mbps Base-X SFP port, Advanced Functions: 6KV Lightning Protection Store and forward:Yes CCTV: 1-8 ports support QoS,If multiple IP cameras are connected to the switch, you are recommended to enable this mode and connect the G1 or SFP1 port of this switch to the upstream device,like the monitoring computer. This ensures smoother monitoring video playback. Standard: The switch’s functions are similar with a common unmanaged switch’s and all the ports of the switch can communicate with each other. VLAN: In this mode, 1-16 ports of the switch cannot communicate with each other, but can communicate with the G1 and SFP1 ports. It can be used to isolate broadcast storms and DHCP broadcasts. Extend: In this mode, the data rate of 1-8 port is limited to 10 Mbps, whereas the maximum transmission distance of the port is increased to 250 meters. All the ports of the switch can communicate with each other., Transmission Method: Wired, Data Transmission Rate: 16 10/100 Mbps Base-TX ports(Data/Power) 1 10/100/1000 Mbps Base-T port(Data), MAC Address Table: 4K MAC, Environment: Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing, Interface: 16 10/100Base-TX ports(Data/Power) 1 10/100/1000Base-T port(Data) 1 1000Base-X SFP port, LED: 16*Link/Act per device 1*G1 Link/Act per device 1*SFP Link/Act per device 1*PoE-MAX per device 1*Power per device, Power Supply: PoE supply management: PoE supply management: Port 1 to Port 16 support IEEE802.3at/af POE standard Input Power: AC:100-240V~ 50/60Hz Power Consumption: in full configuration:<150W PoE Max Power Supply:135W, Dimensions (L x W x H): 294 x 178 x 44 mm ( W x D x H ), Warranty: 1 Year. Standout features: Type: Switch, Interface: 16 10/100Base-TX ports(Data/Power) 1 10/100/1000Base-T port(Data) 1 1000Base-X SFP port, Warranty: 1 Year. Whether you're upgrading an existing setup or building something new, this Network Switch is a solid choice for gamers, professionals, and everyday users in Bangladesh looking for dependable performance. This is an original Tenda product, available with official warranty and after-sales support from Creators Computer — Bangladesh's trusted online and retail computer shop.
