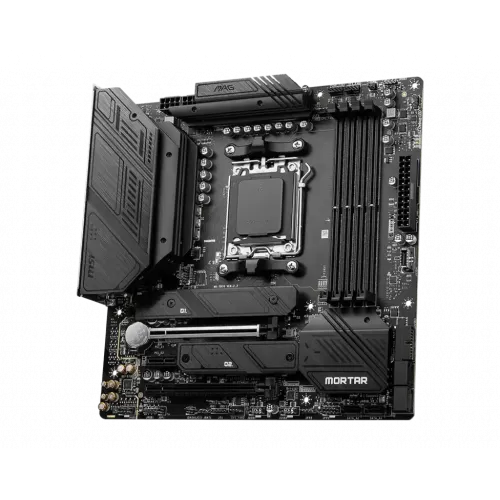

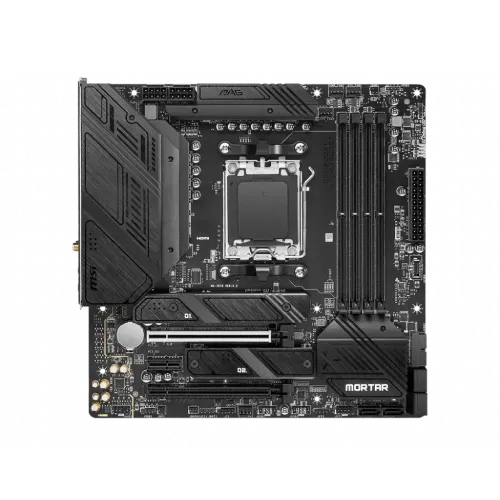

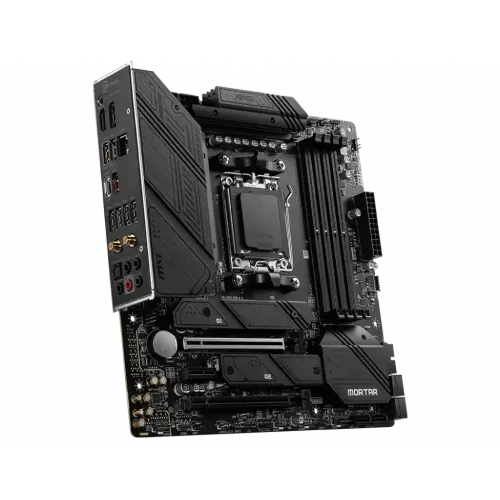

MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard
MSI MSI AMD Motherboards

MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard

MSI MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard — a quality AMD Motherboards available at Creators Computer.

Cash Discount Available

Product availability and pricing are subject to change. We will confirm availability and final price before processing your order.

Technical Specifications

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5
Chipset AMD B650
Form Factor mATX243.84mmx243.84mm
Audio Realtek ALC4080 Codec7.1-Channel High Performance AudioSupports S/PDIF outputSupports up to 32-Bit/384 kHz playback on front panel
PCI 2x PCI-E x16 slotSupport x16/ x41x PCI-E x1 slotPCI_E1 PCIe 4.0 supports up to x16 (From CPU)PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Type DDR5
Slots 4 DIMMs
Supported Memory Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Maximum Memory 128GB
Graphics 1x HDMI1x DisplayPortSupport HDMITM 2.1 with HDR, maximum resolution of 4K 60HzSupport DP 1.4, maximum resolution of 8K 60Hz
HDMI 1x HDMI
Display Port (s) 1x Display Port

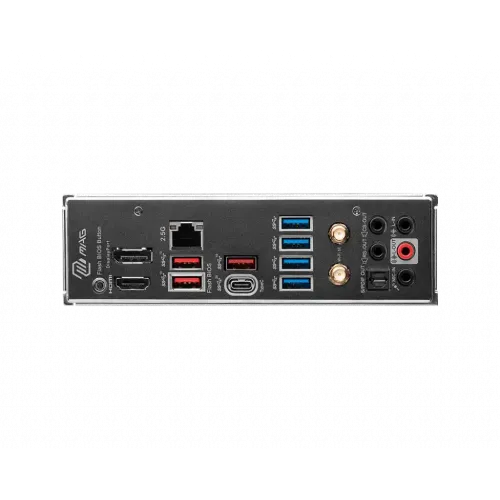

USB (s) 4x USB 2.0 (Front)4x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)3x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Front)1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Realtek RTL8125B 2.5Gbps LAN
Wireless Communication module AMD Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RXSupports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bandsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth 5.2
Supported Storage 2x M.2 slotM.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices6x SATA 6G port
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio HD Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan3x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)2x RGB LED connector(JRGB)4x USB 2.02x USB 3.2 Gen1 Type A1x USB 3.2 Gen2 Type C
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Manufacturing Warranty 3 Years

Product Overview

The MSI MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard is a AMD Motherboards built for reliable, everyday performance. Available at ৳28,600.00 price in Bangladesh, with fast delivery across Dhaka and nationwide. Key specifications of the MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard include Supported CPU: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5, Chipset: AMD B650, Form Factor: mATX243.84mmx243.84mm, Audio: Realtek ALC4080 Codec7.1-Channel High Performance AudioSupports S/PDIF outputSupports up to 32-Bit/384 kHz playback on front panel, PCI: 2x PCI-E x16 slotSupport x16/ x41x PCI-E x1 slotPCI_E1 PCIe 4.0 supports up to x16 (From CPU)PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 PCIe 4.0 supports up to x4 (From Chipset), Type: DDR5, Slots: 4 DIMMs, Supported Memory: Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz, Maximum Memory: 128GB, Graphics: 1x HDMI1x DisplayPortSupport HDMITM 2.1 with HDR, maximum resolution of 4K 60HzSupport DP 1.4, maximum resolution of 8K 60Hz, HDMI: 1x HDMI, Display Port (s): 1x Display Port, USB (s): 4x USB 2.0 (Front)4x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)3x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Front)1x USB 3.2 Gen2x2 Type C (Rear), LAN Port (s): Realtek RTL8125B 2.5Gbps LAN, Wireless Communication module: AMD Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RXSupports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bandsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth 5.2, Supported Storage: 2x M.2 slotM.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices6x SATA 6G port, RAID: Supports RAID 0, RAID 1, and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe storage devices, Audio: HD Audio Connectors, Internal I/O Ports: 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan3x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)2x RGB LED connector(JRGB)4x USB 2.02x USB 3.2 Gen1 Type A1x USB 3.2 Gen2 Type C, TPM (Trusted Platform Module ): 1x TPM pin header(Support TPM 2.0), Manufacturing Warranty: 3 Years. Standout features: Type: DDR5. Whether you're upgrading an existing setup or building something new, this AMD Motherboards is a solid choice for gamers, professionals, and everyday users in Bangladesh looking for dependable performance. This is an original MSI product, available with official warranty and after-sales support from Creators Computer — Bangladesh's trusted online and retail computer shop.
